Wireless Transmission

The Boxx Atom provides a zero delay microwave transmission solution for a host of Video Assist requirements in a small lightweight form factor.

​

Operating within the 5GHz licence exempt spectrum, the features have been designed for today’s fast moving productions. The Atom system has been optimized to work out of the box with minimal configuration. Atom operates well in a multi-camera environment by making the most efficient use of the available spectrum.

​

Features broadcast mode, no pairing required.

​

• Small and lightweight

• Zero frame latency

• Manual channel select

• 600 metre range

​

​

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission with High-Bright Monitor Combo from DJI.



The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies.



Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.

​

Standalone DJI receivers (non-monitor models) are available for rent and are compatible with this system.

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology.



SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles.



The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.​​​

Bolt Pro 2000 3G-SDI TX is a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2,000ft over the unlicensed 5GHz band.

​

External antennas with an OLED screen for setting selection. All Bolt models are multicast capable up to 4 receivers, support timecode and metadata passthrough.



Bolt receivers have integrated 3D LUTs that output custom graded video. Custom LUTs can be loaded via the Bolt Manager and selected on OLED screen.



Each kit comes equipped with a long range panel antenna that can handle high RF interference areas.

​

• Transmits uncompressed 1080p

• 3 ranges 300', 600' and 2,000'

• Multicast up to 4 recievers

• Requires pairing

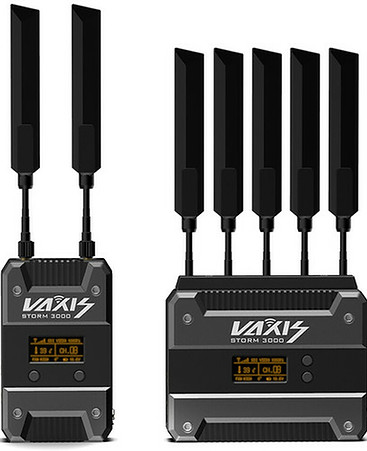

The Storm 3000 from Vaxis features a 3000' range and supports up to 1080p60 uncompressed signal transmission with less than 1 ms of latency over the 5.1 to 5.9 GHz frequency.



The transmitter features 3G-SDI and HDMI inputs plus a 3G-SDI loop output, and the receiver has dual 3G-SDI simultaneous outputs and an HDMI output. Both units come with V-mount battery plates. Both also support continuous power via 2-pin LEMO power inputs.

​

Other features include OLED displays, multicasting, timecode and metadata support, ARRI ALEXA Mini instant playback, and smart active cooling that allows for extended operation in hot environments. Features broadcast mode, no pairing.

​

• Transmits uncompressed 1080p

• 3,000' range

• Less than 1ms latency

• 40MHz channel bandwidth
